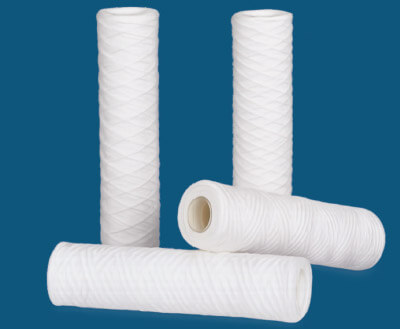

String Wound Filter Cartridges

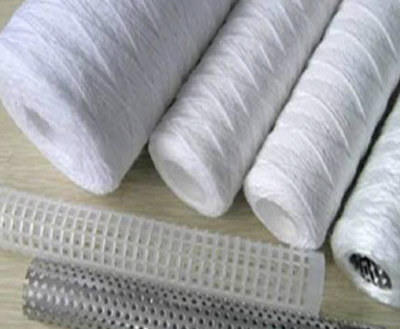

String Wound Filter Cartridges are depth filtration elements produced by precisely winding yarn fibers around a rigid core. The winding pattern creates multiple layers of filtration media that effectively capture particles of different sizes throughout the depth of the cartridge.
These cartridges are available with different yarn materials such as polypropylene, cotton, polyester, and glass fiber, allowing them to be used with a wide range of process fluids. The depth filtration structure provides excellent dirt holding capacity and consistent filtration performance even in applications with high particulate loads.
String Wound Filter Cartridges are widely used in Industrial Water Treatment Systems, Chemical Processing Plants, Food and Beverage Process, and Oil Filtration Systems. Their versatility and high filtration capacity make them an effective solution for removing suspended solids and sediment from liquids.

DEPTH FILTRATION SOLUTION

Depth filtration elements produced by precisely winding yarn fibers around a rigid core.
Multiple layers of filtration media effectively capture particles of different sizes throughout the depth of the cartridge.
Available with polypropylene, cotton, polyester, and glass fiber yarn materials.
Suitable for a wide range of process fluids.
Excellent dirt holding capacity and consistent filtration performance for high particulate load applications.

Material of Construction – Filter Media	Polypropylene Yarn / Cotton Yarn / Glass Fiber Yarn
End Configurations Available	DOE / SOE 226 with Fin (Code 7) / 226 with Flat Cap / 222 with Fin (Pushfit type) / 222 with Flat Cap
Material of Construction - Inner Core	Polypropylene Core / Stainless Steel Core
Material of Construction - End Caps (SOE)	Polypropylene
Material of Construction - O-ring / Gaskets	Silicone / EPDM / Viton
Pore Sizes Available (µm)	0.5 µ to 100 µ
Available Lengths	10” to 40”
Available Sizes	Diameter - 2.5” / 4” / 4.5”
Maximum Operating Temperature	Polypropylene ≤ 80°C
	Cotton Yarn ≤ 100°C
	Glass Fiber with SS Core ≤ 200°C
Recommended Change-out Differential Pressure	2.5 Bar
