We are Manufacturer, Supplier, Exporter of RBCM ( Resin Bonded Cellulose Melamine ) Filter Cartridges, RBCM Filters / Cartridges, RBC Filter Cartridges,
RBCM Filters / Cartridges and Our Setup Situated at Pune, Maharashtra, India

Resin Bonded Filter Cartridges (RBC)

Resin Bonded Filter Cartridges are depth-type filter elements manufactured by intrinsically bonding specially formulated fibers with a thermosetting resin like melamine formalin resin or phenolic resin. This process creates a rigid, strong, and chemically resistant filter structure capable of removing sediment and particulate contaminants from liquids, piped air etc.
Resin Bonded Filter Cartridges function through depth filtration. As liquid passes through the thick porous structure, suspended particles are trapped within the media layers. Larger particles are captured near the outer surface, while finer particles are retained deeper inside the cartridge, ensuring efficient filtration. This structure also significantly enhances dirt holding capacity and ensures longer service life compared to conventional filters. These cartridges offer excellent mechanical strength and are capable of operating under demanding process conditions such as high pressure, high temperature, and aggressive chemical environments.
Resin Bonded Filter Cartridges are widely used in applications requiring consistent particle removal and reliable filtration performance. Their resistance to harsh operating conditions make them ideal.

OUR PRODUCT RANGE

These RBCs are specifically designed for Hydraulic oil fine filtration where achieving low NAS class value is the aim.

These RBCs are designed for other industrial applications like Transformer / Gear / Lube Oil Filtration, Resin Filtration etc.

These RBCs are certified food grade and are also Bio - Compatible as per Oral Injectability Test. Thus they are completely safe to be used in contact with food or applications involving potable drinking water, beverages, pharmaceutical applications, distilleries, IMFL filtration, cosmetics, syrups etc. These filters do not impart taste, odour or colour to the filtrate and also comply with Overall Global Migration Test as per IS 9845 thereby ensuring no migration of filter particles into filtrate.

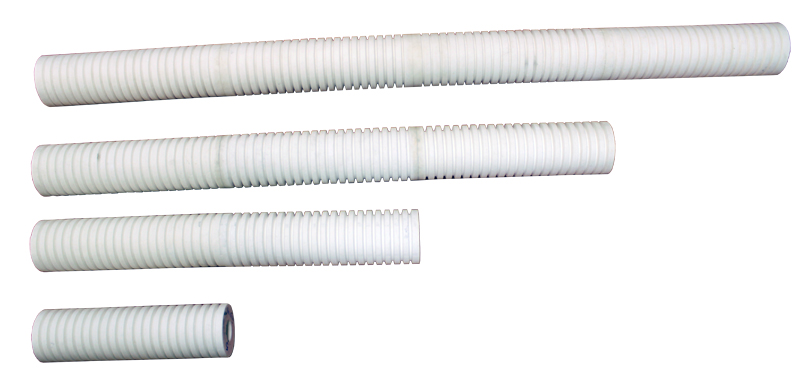

Material of Construction	White RBC	Intrinsically bonded alpha cellulose fibres with melamine formaldehyde (MF) resin

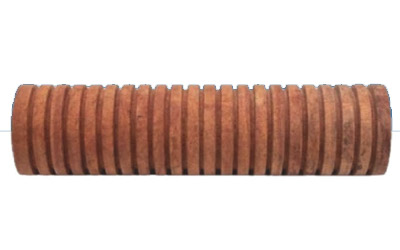

	Brown RBC	Specially formulated fibres impregnated with phenol formaldehyde (PF) resin
	Grey RBC	Specially formulated fibres impregnated with melamine formaldehyde (MF) resin
Food Grade Compatibility	White RBC are compatible as per FDA 21 CFR
Available Dimensions	Length	50 mm to 1016 mm
	Outer Diameter x Inner Diameter	63 mm OD x 28 mm ID 70 mm OD x 25 mm ID 130 mm OD x 68 mm ID

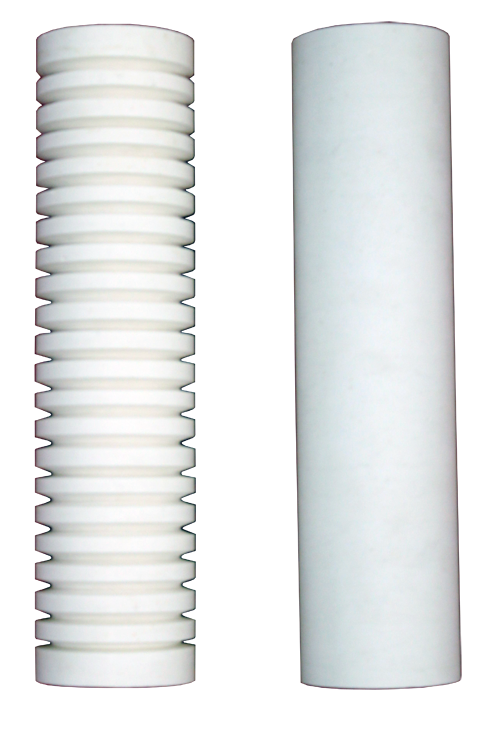

	Surface Type	Grooved / Plain
Available End Connections	DOE / SOE
Pore Sizes Available (µm)	Fine Filters	0.1 µ / 0.2 µ / 0.45 µ / 0.5 µ
	Pre Filters	1 µ / 3 µ / 5 µ
	Basic Filters	10 µ / 25 µ / 50 µ / 75 µ / 100 µ
Flowrate from single 10” Filter Element	Upto 1200 litres/hour ( Water ) Upto 300 litres/hour ( Oil - 68 cSt )
Maximum Operating Temperature	White RBC	100°C
	Brown RBC	140°C
	Grey RBC	121°C
Maximum Pressure	White RBC	60 psi (4.2 kg/Cm²)
	Brown RBC	90 psi (6.2 kg/Cm²)
	Grey RBC	90 psi (6.2 kg/Cm²)
Recommended change-out differential pressure	Increase of 2 Bar in pressure from initial working pressure of new cartridge
