PES Filter Cartridges

PES Filter Cartridges are high performance filtration elements designed for sterile filtration and critical process applications. The filtration membrane is made from polyethersulfone (PES), a hydrophilic material that allows for high flow rates and efficient particle retention.
The hydrophilic nature of PES membranes enables rapid filtration of aqueous solutions while maintaining excellent microbial retention capability. These membranes also exhibit low protein binding characteristics, which makes them ideal for biotechnology and pharmaceutical applications where product recovery and purity are important.
PES Filter Cartridges are widely used in Sterile Filtration of Pharmaceuticals, Vaccines, Biological Solutions, and Purified Water Systems. Their consistent filtration performance, high throughput, and low extractable levels make them a preferred filtration solution for industries requiring stringent quality standards.

STERILE & HIGH PURITY FILTRATION

High performance filtration elements designed for sterile filtration and critical process applications.
Hydrophilic PES membrane provides high flow rates and efficient particle retention.
Enables rapid filtration of aqueous solutions while maintaining excellent microbial retention capability.
Low protein binding characteristics make them ideal for biotechnology and pharmaceutical applications.
Suitable for applications where product recovery and purity are important.

Material of Construction - Filter Media	Polyethersulfone (PES) Media
Material of Construction - Support Layers , Drainage Layers	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material Of Construction - Outer Cage , Inner Support , End Caps	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - O-ring / Gaskets	Silicone / EPDM / Viton / PTFE Encapsulated

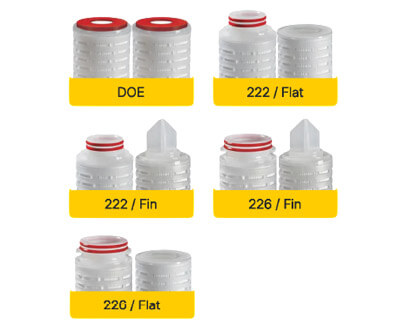

End Configurations Available	DOE / 226 with Fin (Code 7) / 226 with Flat Cap / 222 with Fin (Pushfit type) / 222 with Flat Cap / Other Custom SOE connections
Pore Sizes Available (µm)	0.2 µ to 5 µ
Available Lengths	5” to 40”
Efficiency of Filter	More than 99%
Manufacturing Environment	Class 10000 Clean Room
Maximum Operating Temperature	≤ 85°C
Max. Differential Pressure (In Direction of Flow)	≤ 0.4 MPa @ 20°C; ≤ 0.2 MPa @ 60°C
Inline Steam Sterilization	Not Less Than 15 Cycles (121°C, 30 min)
Integrity Test (Bubble Point Test)	0.4347 Mpa (Sample value for 0.2 µ)
Biosafety	Meet the requirements for the USP 23 Class VI Plastics Test
Oxidizable Substances	Meet the current USP requirements
