PP Spun Filter (Meltblown) Cartridges

We are Manufacturer, Supplier, Exporter of PP spun Filter (Meltblown) Cartridges and Our Setup Situated at Pune, Maharashtra, India


PP Spun Filter (Meltblown) Cartridges

PP Spun Filter (Meltblown) Cartridges

  • PP Spun Filter Cartridges are depth filtration cartridges manufactured using melt-blown polypropylene fibers. The fibers are thermally bonded to create a strong and uniform filtration structure without the use of adhesives or binders. This manufacturing process ensures excellent chemical compatibility and prevents contamination of the filtered fluid.
  • The filter media features a graded density structure where the outer layers capture larger particles while the inner layers remove finer contaminants. This depth filtration mechanism allows the cartridge to hold a large amount of dirt and sediment, significantly extending the service life of the filter.
  • PP Spun Filter Cartridges are widely used as sediment filters in Water Purification Systems, Reverse Osmosis pre-filtration, Industrial Process Filtration, and Municipal Water Treatment applications. Their reliable performance and economical design make them one of the most commonly used filtration cartridges in the industry.

Widely use in Industries:

  • 01 Water Treatment
  • 02 Industrial Process Filtration
DEPTH FILTRATION SOLUTION

PP Spun Filter (Meltblown) Cartridges

PP Spun Filter Meltblown Cartridges
01

PP Spun Filter Cartridges

  • Depth filtration cartridges manufactured using melt-blown polypropylene fibers.
  • Thermally bonded fibers create a strong and uniform filtration structure without adhesives or binders.
  • Excellent chemical compatibility and reduced risk of contamination of the filtered fluid.
  • Graded density structure captures larger particles in the outer layers and finer contaminants in the inner layers.
  • High dirt and sediment holding capacity provides extended filter service life.

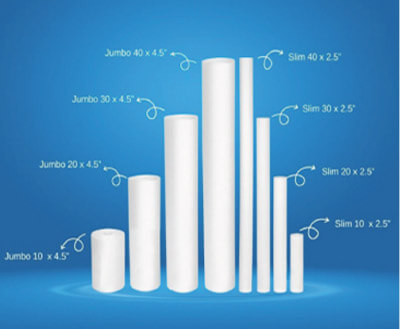

Meltblown Filter Cartridge
02

Melt Blown Filter Cartridge

  • Jumbo 40 x 4.5"
  • Jumbo 30 x 4.5"
  • Jumbo 20 x 4.5"
  • Jumbo 10 x 4.5"
  • Slim 40 x 2.5"
  • Slim 30 x 2.5"
  • Slim 20 x 2.5"
  • Slim 10 x 2.5"

Technical Specifications – PP Spun Filter (Meltblown) Cartridges

Material of Construction – Filter Media Melt-blown Polypropylene Fibers
End Configurations Available DOE / SOE
226 with Fin (Code 7) / 226 with Flat Cap /
222 with Fin (Pushfit type) / 222 with Flat Cap
Types With core / Without Core
Smooth Finish /
Orange Peel (Rough) Finish / Grooved Finish
Material of Construction –
Inner Core , End Caps 		Polypropylene
Material of Construction –
O-ring / Gaskets 		Silicone / EPDM / Viton
Pore Sizes Available (µm) 0.5 µ to 100 µ
Available Lengths 5” to 40”
Available Sizes Diameter - 2.5” / 4” / 4.5”
Maximum Operating Temperature ≤ 80°C
Recommended Change-out Differential Pressure 2.5 Bar
