PTFE Filter Cartridges

PTFE Filter Cartridges are designed for high purity filtration applications requiring exceptional chemical resistance and reliable filtration performance. The filtration media is made from polytetrafluoroethylene (PTFE), a highly inert material known for its outstanding resistance to aggressive chemicals, solvents, and high temperatures.
These cartridges are typically hydrophobic in nature, (if required hydrophilic can also be made) making them ideal for gas filtration and sterile air filtration applications. PTFE membranes provide excellent particle and microbial retention while maintaining high flow rates and low pressure drop. Their ability to withstand repeated sterilization cycles using steam or chemical agents makes them particularly suitable for critical filtration processes.
PTFE Filter Cartridges are widely used in Pharmaceutical Manufacturing, Biotechnology Processing, Semiconductor Production, and Chemical Processing industries. Their superior chemical compatibility and high filtration efficiency make them an essential component in applications where purity and contamination control are critical.

HIGH PURITY FILTRATION

Designed for high purity filtration applications requiring exceptional chemical resistance and reliable filtration performance.
PTFE filtration media provides outstanding resistance to aggressive chemicals, solvents, and high temperatures.
Typically hydrophobic in nature, with hydrophilic options available when required.
Excellent particle and microbial retention with high flow rates and low pressure drop.
Suitable for repeated sterilization cycles using steam or chemical agents.

Material of Construction - Filter Media	Polytetrafluoroethylene (PTFE) Media
Material of Construction - Support Layers , Drainage Layers	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material Of Construction - Outer Cage , Inner Support , End Caps	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - O-ring / Gaskets	Silicone / EPDM / Viton / PTFE Encapsulated

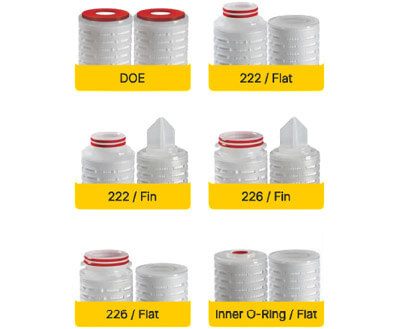

End Configurations Available	DOE / 226 with Fin (Code 7) / 226 with Flat Cap / 222 with Fin (Pushfit type) / 222 with Flat Cap / Internal O ring Pushfit type / Other Custom SOE connections
Pore Sizes Available (µm)	0.2 µ to 10 µ
Available Lengths	5” to 40”
Efficiency of Filter	More than 99%
Manufacturing Environment	Class 10000 Clean Room
Maximum Operating Temperature	≤ 80°C
Max. Differential Pressure (In Direction of Flow)	≤ 0.5 MPa @ 20°C ; ≤ 0.2 MPa @ 80°C
Inline Steam Sterilization	Not Less Than 15 Cycles (121°C , 30 min)
Integrity Test (Water Intrusion Test)	WIT : ≤ 8ml/10Min @ 2600 mbar
Integrity Test (Bubble Point Test)	More than 999 mbar in alcohol (IPA/Water 70/30)
Biosafety	Meet the requirements for the USP 23 Class VI Plastics Test
Oxidizable Substances	Meet the current USP requirements
