We are Manufacturer, Supplier, Exporter of Glass Fiber Pleated Cartridges with PP Body and Our Setup Situated at Pune, Maharashtra, India

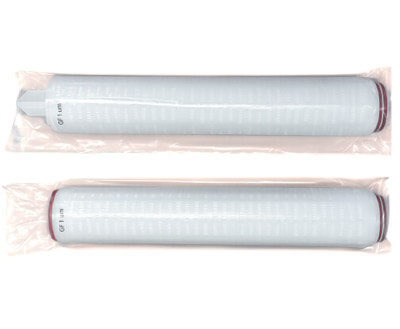

Glass Fiber Pleated Cartridges with PP Body
Glass Fiber Pleated Cartridges with PP Body
- Glass Fiber Pleated Filter Cartridges are high efficiency filtration elements designed for fine particle removal in demanding industrial applications. The filter media consists of micro-glass fibers that provide excellent particle retention and high filtration efficiency. The pleated configuration increases the filtration surface area, allowing for higher flow rates and extended filter life.
- These cartridges are supported by a robust polypropylene body that provides mechanical stability and chemical compatibility with a wide range of process fluids. The combination of glass fiber media and polypropylene support structure ensures reliable filtration performance even in harsh industrial environments.
- Glass Fiber Pleated Cartridges are commonly used in applications that require Fine Particulate Filtration, including Pharmaceutical Processing, Chemical production, Solvent Filtration, and High Purity Liquid Filtration systems.
- Their superior filtration efficiency and high temperature tolerance make them particularly suitable for critical filtration processes where consistent performance is essential.
Widely use in Industries:
- Oil Filtration Industries
- Breweries and Alcohol Production
- Chemical Manufacturing
- Edible Oil Filtration
- Paints, Coatings, Resins Production
GLASS FIBER PLEATED FILTRATION
Glass Fiber Pleated Cartridges with PP Body
01
Glass Fiber Pleated Cartridges with PP Body
- High efficiency filtration elements designed for fine particle removal in demanding industrial applications.
- Micro-glass fiber media provides excellent particle retention and high filtration efficiency.
- Pleated configuration increases filtration surface area, allowing higher flow rates and extended filter life.
- Robust polypropylene body provides mechanical stability and chemical compatibility with a wide range of process fluids.
- Suitable for critical filtration processes requiring consistent performance.
02

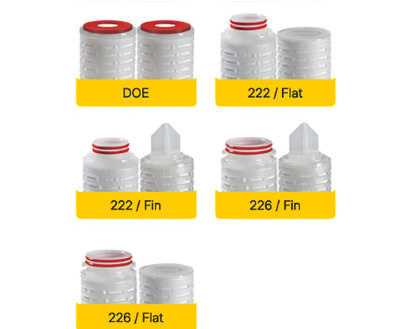

End-Cap Configuration
- DOE
- 222 / Flat
- 222 / Fin
- 226 / Fin
- 226 / Flat
Technical Specifications – Glass Fiber Pleated Cartridges with PP Body
| Material of Construction - Filter Media | Glass Microfiber Media |
|---|---|
|
Material of Construction - Support Layers , Drainage Layers |
Polypropylene
(Approved as per FDA regulations 21 CFR 177.1520) |
|
Material Of Construction - Outer Cage , Inner Support , End Caps |
Polypropylene
(Approved as per FDA regulations 21 CFR 177.1520) |
|
Material of Construction - O-ring / Gaskets |
Silicone / EPDM / Viton / PTFE Encapsulated |
| End Configurations Available |
DOE /
226 with Fin (Code 7) / 226 with Flat Cap / 222 with Fin (Pushfit type) / 222 with Flat Cap / Other Custom SOE connections |
| Pore Sizes Available (µm) | 0.5 µ to 10 µ |
| Available Lengths | 5” to 60” |
| Efficiency of Filter | More than 99% |
| Manufacturing Environment | Class 10000 Clean Room |
| Maximum Operating Temperature | ≤ 80°C |
| Recommended change-out differential pressure | 2.5 Bar |
| Autoclave Capabilities | 121°C / 30 min |
| Typical Surface Area | 0.5 m² (per 10”) |
