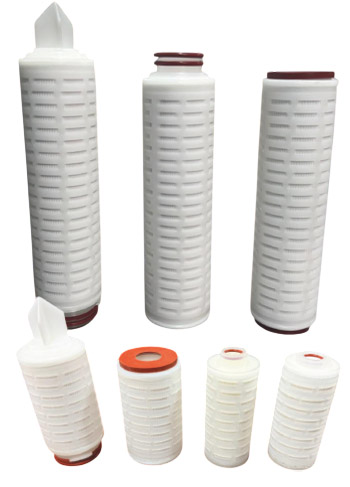

PP Pleated Filter Cartridges

PP Pleated Filter Cartridges are manufactured using high-quality polypropylene membrane media that is pleated to create a large filtration surface area within a compact cartridge design. The pleated construction significantly increases the available filtration area compared to standard depth filters, resulting in higher flow rates, improved filtration efficiency, and reduced pressure drop.
These cartridges are constructed using thermally bonded polypropylene components, ensuring excellent chemical compatibility eliminating the need for adhesives or binders that could contaminate the filtered fluid. The all-polypropylene construction provides outstanding resistance to a wide range of acids, bases, and industrial chemicals, making these cartridges suitable for demanding filtration environments.
PP Pleated Filter Cartridges are widely used in liquid filtration systems where high purity and consistent filtration performance are required. They are commonly used as pre-filters in pharmaceutical manufacturing, chemical processing, reverse osmosis systems and process water filtration industries where reliable particle removal and long service life are essential.

PP PLEATED FILTER CARTRIDGES

High-quality polypropylene membrane media with pleated construction for increased filtration surface area.
Thermally bonded polypropylene components provide excellent chemical compatibility.
Adhesive-free and binder-free construction helps prevent contamination of the filtered fluid.
Suitable for a wide range of acids, bases, and industrial chemicals.
Designed for higher flow rates, improved filtration efficiency, reduced pressure drop, and long service life.

Material of Construction – Filter Media	100% Polypropylene High-grade microfiber (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction – Support Layers , Drainage Layers	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material Of Construction - Outer Cage , Inner Support , End Caps	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - O-ring / Gaskets	Silicone / EPDM / Viton / PTFE Encapsulated

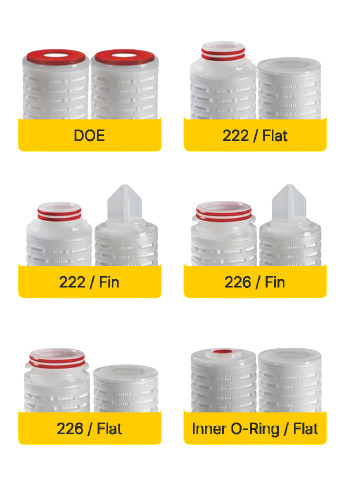

End Configurations Available	DOE / 226 with Fin (Code 7) / 226 with Flat Cap / 222 with Fin (Pushfit type) / 222 with Flat Cap / Internal O ring Pushfit type / Other Custom SOE connections
Pore Sizes Available (µm)	0.1 µ to 100 µ
Available Lengths	5” to 60”
Efficiency of Filter	More than 99%
Manufacturing Environment	Class 10000 Clean Room
Maximum Operating Temperature	≤ 80°C
Recommended change-out differential pressure	2.5 Bar
Autoclave Capabilities	121°C / 30 min
Typical Surface Area	0.5 m² (per 10”)
